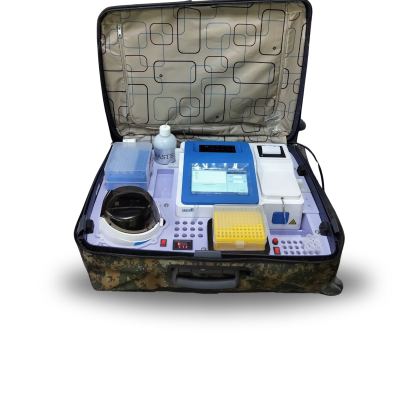

ACLABOX-BIOCHEM is a compact & portable clinical Laboratory with an open system
Semi-Auto chemistry Analyzer in a suitcase. This is rugged & maintenance
free.

Features

1. 5-inch Color LCD, Touch screen

2.  Flow cell and Cuvette test mode compatible

3.  Real time curve showing

4. 5 wavelengths, 80
test items pre-programmed

5.  Memory for 10,000 sample results

6.  Light source hibernate function making lamp life longer

7.  RS232 interface, PC connecting

8.  Onboard 4 Hrs power backup

Technical specification

Semi-automatic Chemistry Analyzer

Test mode: Kinetic, End point, Two-point, Absorbance

Wavelength: 7 std filters, 340, 405, 492,510, 546, 578, 630nm, 1 free position Wavelength precision +2nm, width 10nm

Absorbance range: 0~4.500 Abs

Absorbance precision outside 0.0001 Abs, de 0.00001 Abs Carryover: < 1%

Repeatability CV:< 1%

Incubator 37°C, 30°C, 25°C, and others, Precision ±0.1C Sample volume: 0~3000ul (50OuL recommended)

Data Storage 10000

Quality control curve: XSO CV% quality control curve for each test item Flow cell 32-quartz glass, 10mm

Lamp: Philips 6V 10W Halogen Lamp with longer the time)

Screen 7-inch color LCD, CPU: ARM series high speed micro-CPU Printer: Internal thermal sensitive printer

Interface RS-232

Work Environment: Temperature 0°C ~40°C, Humidity: 80% Power supply 100-240VAC, 50~60 Hz, 100VA

Components

Suitcase

Semi-Automatic Chemistry Analyzer 2-Micropippette (5-50ul& 100-1000ul) Mini-Centrifuge

Small & Large Tips with Tips Box, Centrifuge Tube Battery indicator, power Adapter & battery

Usual Test List

Liver function: ALT AST ALP T-BIL D-BIL TP ALB TTT CHE Nh

Renal function: BUN CRE UA URE CO2-CP Y-GT

Lipids: T-CHO TG HDL-C LDL-C

Cardiac function: CK CK-MB LDH Immune proteins: IGA IGG IGM C3 Others: GLU HGB AMS
