Static Lab

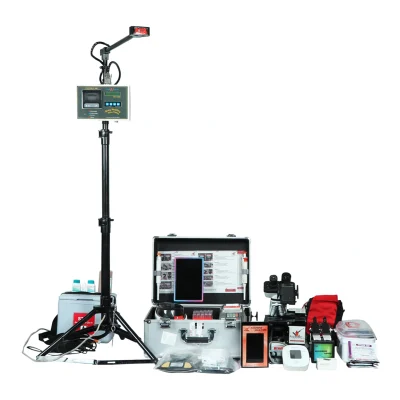

ACLABOX-BIOCHEM is a compact and portable clinical laboratory featuring an open system semi-auto chemistry analyzer neatly packaged within a suitcase. This system is robust, durable, and requires minimal maintenance.

Features

1. 5-inch Color LCD, Touch screen

2.  Flow cell and Cuvette test mode compatible

3.  Real time curve showing

4. 5 wavelengths, 80
test items pre-programmed

5.  Memory for 10,000 sample results

6.  Light source hibernate function making lamp life longer

7.  RS232 interface, PC connecting

8.  Onboard 4 Hrs power backup

Technical specification

Semi-Automatic Chemistry Analyzer

Test Modes: Kinetic, End Point, Two-Point, Absorbance

Wavelength: 7 standard filters – 340, 405, 492, 510, 546, 578, 630nm, with 1 free position. Wavelength precision: ±2nm, width 10nm.

Absorbance Range: 0 to 4.500 Abs. Absorbance precision outside 0.0001 Abs, default 0.00001 Abs. Carryover: < 1%.

Repeatability CV: < 1%.

Incubator: 37°C, 30°C, 25°C, and others. Precision: ±0.1°C. Sample volume: 0 to 3000ul (50ul recommended).

Data Storage: 10,000 records.

Quality Control Curve: XSO CV% quality control curve for each test item. Flow cell: 32-quartz glass, 10mm.

Lamp: Philips 6V 10W Halogen Lamp with extended lifespan.

Screen: 7-inch color LCD. CPU: ARM series high-speed micro-CPU. Printer: Internal thermal-sensitive printer.

Interface: RS-232.

Work Environment: Temperature 0°C to 40°C, Humidity: 80%. Power supply: 100-240VAC, 50~60 Hz, 100VA.

Components

Suitcase

Semi-Automatic Chemistry Analyzer 2-Micropippette (5-50ul& 100-1000ul) Mini-Centrifuge

Small & Large Tips with Tips Box, Centrifuge Tube Battery indicator, power Adapter & battery

Usual Test List

Liver function: ALT AST ALP T-BIL D-BIL TP ALB TTT CHE Nh

Renal function: BUN CRE UA URE CO2-CP Y-GT

Lipids: T-CHO TG HDL-C LDL-C

Cardiac function: CK CK-MB LDH Immune proteins: IGA IGG IGM C3 Others: GLU HGB AMS
